PRODUCT DESCRIPTION

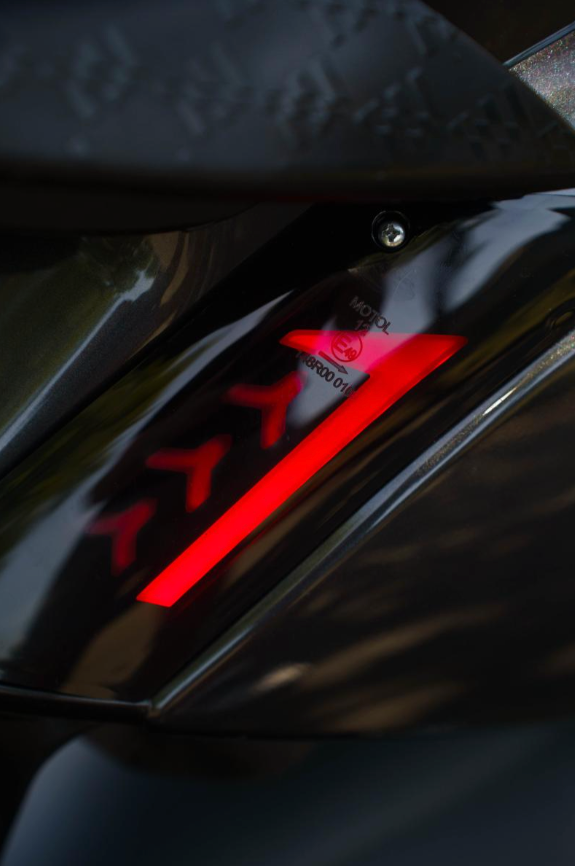

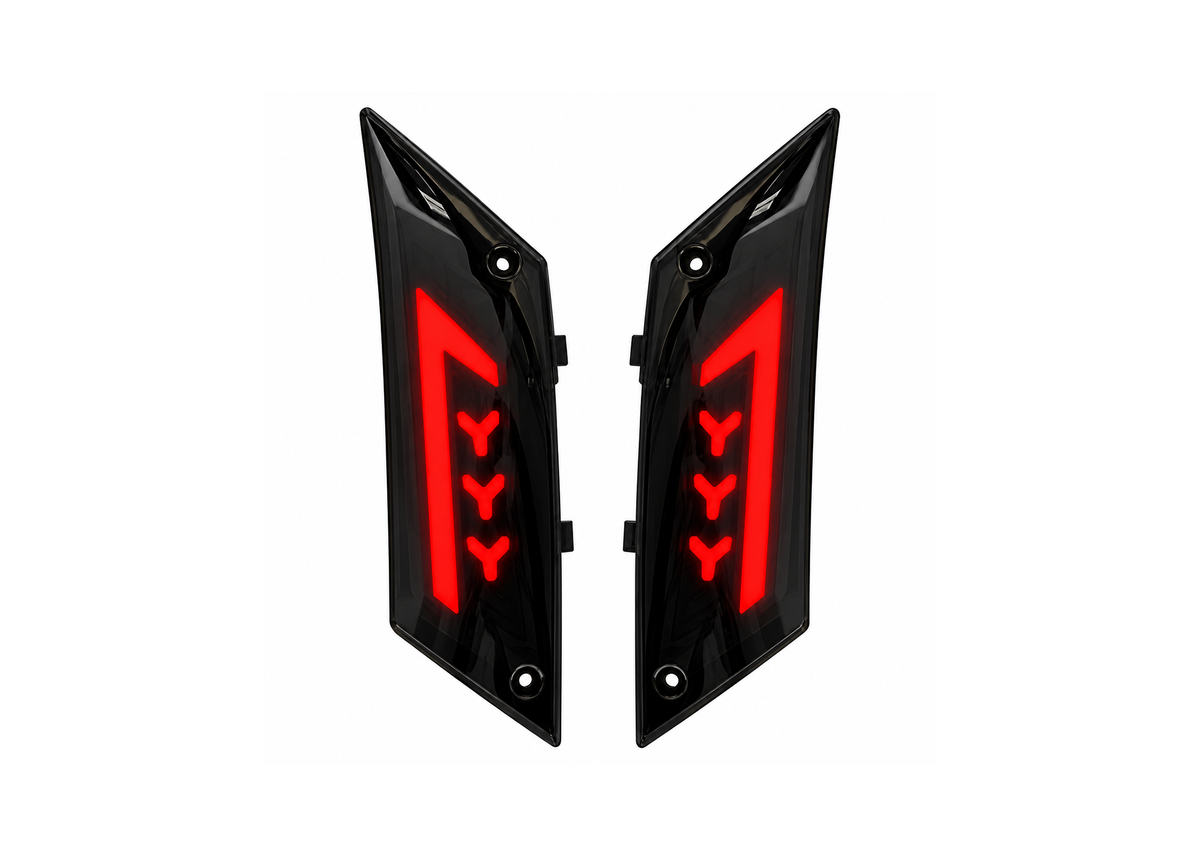

Alpha Styling Rear Indicator Arrow Smoke Matrix

INFORMATION

• Smoked
• Flow/Matrix indicator lights
• With E-mark
• Alpha Styling Rear Indicator Arrow Smoke Matrix

Mounting Information

For Euro 4/5, bridge the relay (behind the rear panel).

FOR EURO3 (CARBURETOR)
1. INSTALL LIGHTING

2. DISCONNECT/CUT THE BLUE/BLACK WIRE FROM THE VOLTAGE REGULATOR AND CONNECT IT TO THE WHITE WIRE (CONSTANT POSITIVE)

3. DISCONNECT/CUT THE YELLOW/BLACK WIRE FROM THE VOLTAGE REGULATOR AND CONNECT IT TO THE WHITE WIRE (CONSTANT POSITIVE)

3. YELLOW/BLACK WIRE TO THE WHITE WIRE

FITMENT

• Fits All Piaggio ZIP type 4 models (2000, SP..) 50/125/170/180

Alpha Styling Rear Indicator Arrow Smoke Matrix

Manufacturer Information
Aplus Holding B.V.
 Koldingweg 7-B
 9723HL Groningen, The Netherlands
