PRODUCT DESCRIPTION

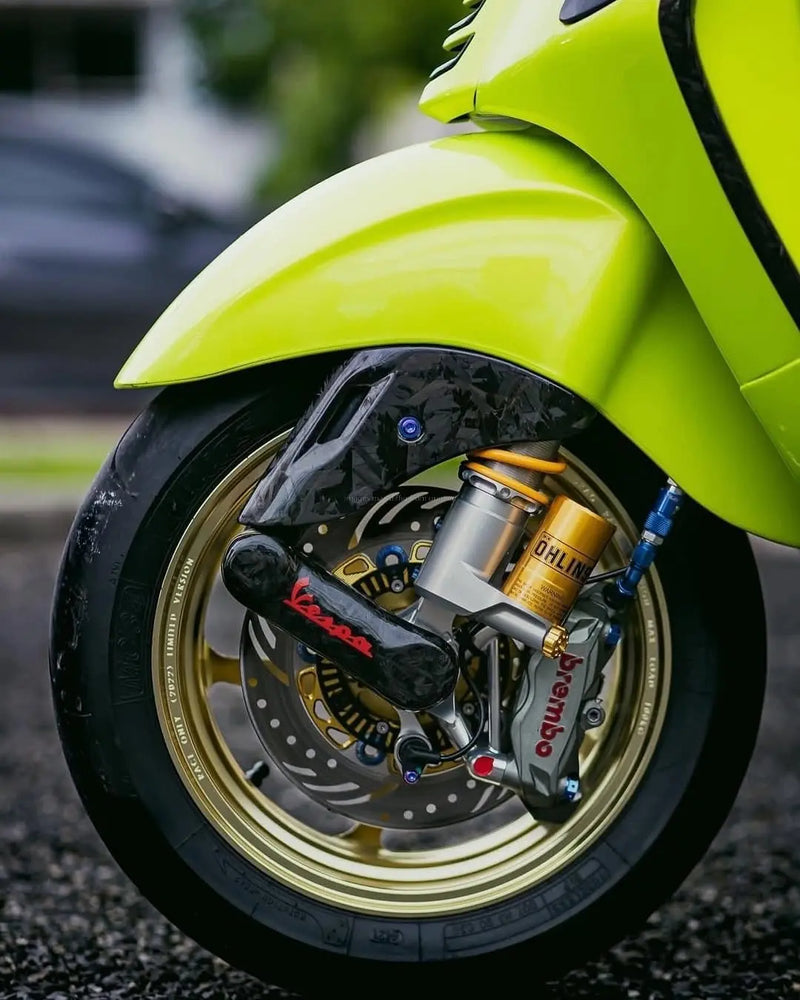

Shock Absorber ÖHLINS STX 36 PI801 Front

INFORMATION

• aluminium CNC
• body: silver
• spring: yellow
• compression stroke: Adjustable
• spring pre-load: continuously adjustable
• with fluid reservoir
• Shock Absorber ÖHLINS STX 36 PI801 Front

Chassis SPORT - comfortable

High end suspension components for the modern Vespa models, ÖHLINS produce over 300 vehicle-specific types of shock absorber.

Every single type of ÖHLINS shock absorber is individually designed and produced for specific vehicles and models. The business credo behind every ÖHLINS product is no guarded secret. It is, in a word, precision. Absolute precision provides the ÖHLINS shock absorbers with their perfect potential performance and is a noble guarantee of success!

What are the main advantages of the ÖHLINS shock absorbers?

• Continuously adjustable spring pre-load.
• Vehicle specific production.
• Models with external reservoirs.

The specifications of every single vehicle that has their shock absorbers fitted are first analysed to produce a fully individualised shock absorber specification, no parts-bin specials here! Their factory set up, the design of the shim packages and the complete adjustment range of every feature is researched through extensive testing under both road and race conditions. This is then evaluated by their engineers and transferred directly to the design and behaviour of their products. ÖHLINS shock absorbers are the result of an intensive development procedure and can convince with their excellent production quality and of course their exemplary performance! All models of ÖHLINS shock absorbers are equipped with a continuously adjustable spring pre-load feature, facilitated by adjuster and locking rings below the spring.

ÖHLINS PI-701

The ÖHLINS PI-701 represent the entry-level versions of the range, no-frills and no unnecessary adjustment possibilities. Simply a solid shock absorber that does exactly what it says on the tin!

• Gas-pressure, single spring shock absorber.
• Internal reservoir.
• 36mm diameter damper piston.

ÖHLINS PI-80/PI-802

ÖHLINS are showing their true colours in the high-end sector of aftermarket suspension components with their PI-801/PI-802 series of shock absorbers. Slightly extended adjustment possibilities than the basic PI-701 version, although still avoiding unnecessary bells and whistles.

• Gas-pressure, single spring shock absorber.
• External 'piggy-back' reservoir.
• Adjustable compression damping.
• 36mm diameter damper piston.
