PRODUCT DESCRIPTION

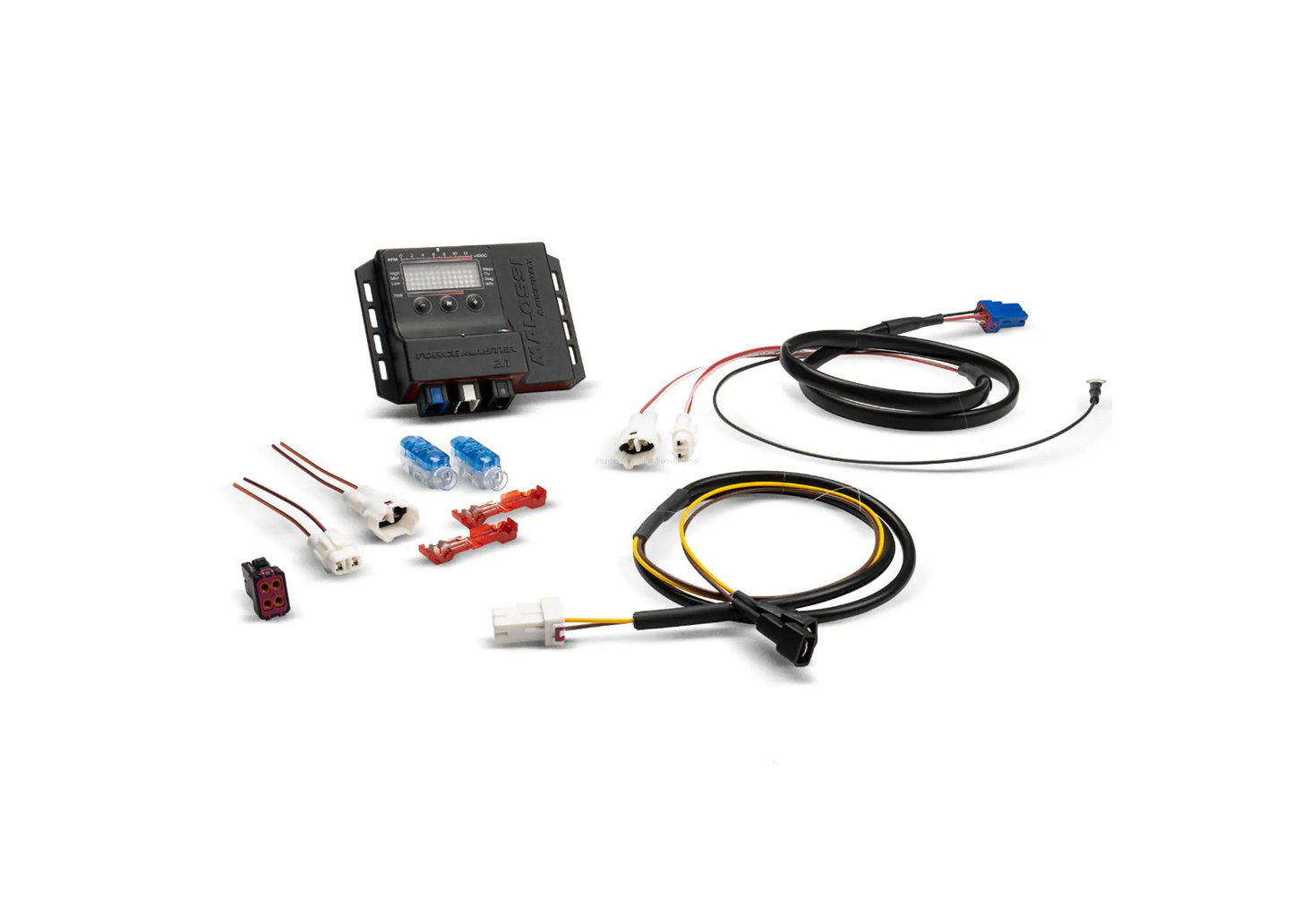

Control Device Fuel Injection MALOSSI Forcemaster 2.1

INFORMATION

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for K and CAN communication lines, a new user interface, and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the original rev limiter.

Technical details

• Carburation adjusting
• ± 14% at min/medium/max
• RPM limiter : + 700 RPM
• Temperature range = -30°C +80°C
• Minimum operating voltage = +7V
• Maximum operating voltage = +16V
• Average current consumption <-200mA
• Environmental protection = IP65
• Control Device Fuel Injection MALOSSI Forcemaster 2.1
• 4 different maps :
• curve 0 - vehicle version 125 cc : original exhaust system, Malossi cylinder (art. 3117737), original head, original camshaft and original filter
• curve 1 - vehicle version 125 cc : Malossi exhaust system with db killer, Malossi cylinder (art. 3117737), original head, original camshaft and original filter
• curve 2 - vehicle version 150 cc : original exhaust system, Malossi cylinder (art. 3117737), original head, original camshaft and original filter
• curve 3 - vehicle version 150 cc : Malossi exhaust system with db killer, Malossi cylinder (art. 3117737), original head, original camshaft and original filter

Full carburetion control is achieved by combining the O₂ controller with the Force Master control unit. The synergy of these two devices has no limits; the entire quoted plane is managed, controlled and optimised for any processing step proposed by Malossi.

*Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

FITMENT

• Aprilia SR Compact GT 125 CBS (2022-2023, RP8MD5100)
• Aprilia SR GT 125 (2021-2024, ZD4MD51)
• Piaggio Medley 125 Basic ABS IGET (2021-2022, RP8MD0100)
• Piaggio Medley 125 Sport ABS IGET (2021-2022, RP8MD0100)
• Piaggio Medley 150 (2021-2024, RP8MD0200)
• Vespa GTS 125 Basic Keyless IGET ABS (2022, ZAPMD3202)
• Vespa GTS 125 Basic Keyless IGET ABS (2023, ZAPMD3202)
• Vespa GTS 125 Basic Keyless IGET ABS (2023, ZAPMD3203)
• Vespa GTS 125 IGET (2021, ZAPMD3200)
• Vespa GTS 125 IGET ABS (2022-2023, ZAPMD3202)
• Vespa GTS 125 IGET ABS ASR (2021, ZAPMD3200)
• Vespa GTS 125 IGET ABS ASR (2022, ZAPMD3202)
• Vespa GTS 125 IGET Super ABS (2021, ZAPMD3201)
• Vespa GTS 125 Super IGET ABS ASR (2021, ZAPMD3200)
• Vespa GTS 125 Super IGET ABS ASR (2021, ZAPMD3200) Racing Sixtie
• Vespa GTS 125 Super Keyless IGET ABS (2023, ZAPMD3202)
• Vespa GTS 125 Super Keyless IGET ABS (2023, ZAPMD3203)
• Vespa GTS 125 Super Keyless IGET ABS (2024, ZAPMD3202)
• Vespa GTS 125 Super Sport IGET ABS ASR (2021, ZAPMD3200)
• Vespa GTS 125 Super Sport IGET ABS ASR (2021, ZAPMD3200) 75th An
• Vespa GTS 125 Super Sport Keyless IGET ABS (2022, ZAPMD3202)
• Vespa GTS 125 Super Sport Keyless IGET ABS (2023, ZAPMD3202)
• Vespa GTS 125 Super Sport Keyless IGET ABS (2023, ZAPMD3203)
• Vespa GTS 125 Super Sport Keyless IGET ABS (2024, ZAPM3202)
• Vespa GTS 125 Super Tech IGET ABS ASR (2021, ZAPMD3200)
• Vespa GTS 125 Super Tech IGET ABS ASR (2021, ZAPMD3201)
• Vespa GTS 125 Super Tech IGET ABS ASR (2021, ZAPMD3201) 75th Ann
• Vespa GTS 125 Super Tech Keyless IGET ABS (2022, ZAPMD3203)
• Vespa GTS 125 Super Tech Keyless IGET ABS (2023, ZAPMD3202)
• Vespa GTS 125 Super Tech Keyless IGET ABS (2023, ZAPMD3203)
• Vespa GTS 125 Super Tech Keyless IGET ABS (2024, ZAPMD3202)
• Vespa GTS 125 Touring IGET ABS ASR (2021, ZAPMD3200)

Control Device Fuel Injection MALOSSI Forcemaster 2.1

Manufacturer: Malossi S.p.A. Via Roma, 118/I 40012 Calderara di Reno (Bologna) - Italy www.malossi.com
