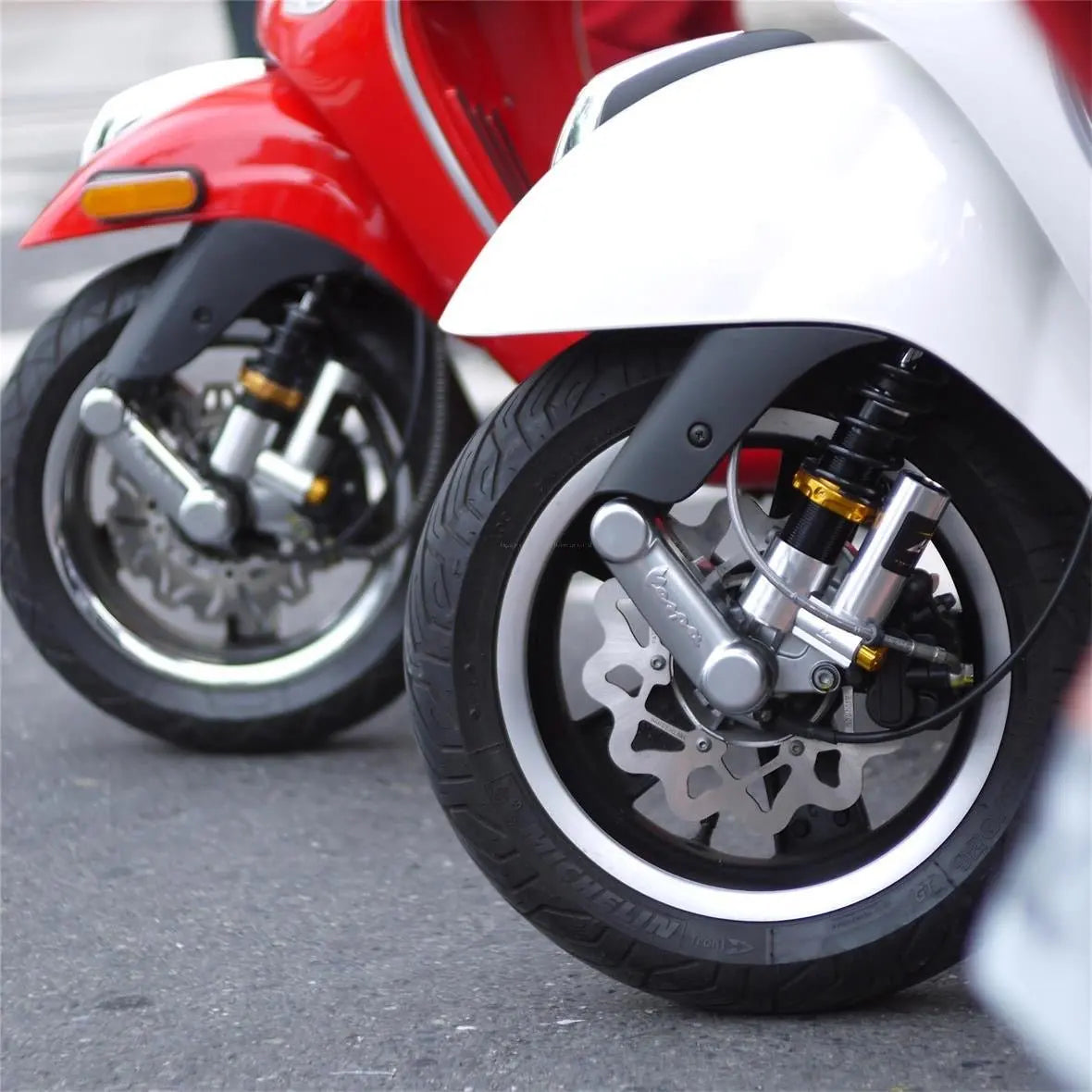

Shock Absorber ZELIONI Front | Vespa GTS/GTS Super/ GTV/GT60/ GT/GT L 125-300cc ('03-'13/'17-'22)

In stock
SKU: ZELSGF01
Regular price €408.00
Shipped in 1-2 days if in stock.

PRODUCT DESCRIPTION

Shock Absorber ZELIONI Front

INFORMATION

  •  245 mm
  • aluminium CNC
  • body: silver/orange
  • spring: black
  • compression stroke: 9-times
  • spring pre-load: continuously adjustable
  • rebound adjustment: 20 settings
  • False

Chassis SPORT - comfortable

For race use only. Not admitted in the area of the German StVZO!

High-end shock absorbers manufactured using CNC machined aluminium alloy complete with almost endless set up possibilities, produced by ZELIONI. This oil-pneumatic gas pressured shock absorber with features including a continuously adjustable spring pre-load, adjustable damping and compression stages integrated into its very modern and highly technical design impresses across the board.

The spring pre-load is continuously adjustable and the compression has nine settings available (apart from the rear unit for the Vespa GTS model), twenty settings for the damping procedure, an external damping reservoir, a pre-load locking ring, a pre-load adjustment tool, CNC machined aluminium construction, black painted spring, silver/orange anodised body.

Spring pre-load : The continuously adjustable pre-load allows you to increase the pre-load, so providing more resistance to the unsprung mass of the suspension components (wheels, tyres brakes, etc.). An adjustment tool is included

Damping stage set-up : The set-up of the re-bound damping rounds off the comprehensive adjustment possibilities of these shock absorber units perfectly. This mechanism governs the rate at which the spring returns to an uncompressed state. This helps keep the overall handling stable while riding over potholes and uneven surfaces and of course during braking. Here, there are twenty pre-set adjustment possibilities for a perfect set-up.

Compression stage set-up : The harder the compression is set-up, the slower the compression of the spring will become.

FITMENT

VESPA GT 125 ZAPM3110000001001 4T AC '03-'05
VESPA GT 125 ZAPM31100 4T LC '03-'05
VESPA GT 200 ZAPM31200 4T LC '03-'06
VESPA GT 200 ZAPM3120000001001 4T LC '03-'06
VESPA GT 60° i.e. 250 ZAPM45102 / ZAPM459 4T LC '06-'07
VESPA GT L (euro 3) 125 ZAPM31100 / ZAPM31101 4T LC '05-'06
VESPA GT L 125 ZAPM31101/ ZAPM31301 4T LC '03-
VESPA GT L 200 ZAPM31200 / ZAPM319K  4T LC '03-'06
VESPA GTS 125 ZAPM31300 4T LC '07-'12
VESPA GTS i.e. / Touring 300 ZAPM45200/ ZAPM459L  4T LC '11-'13
VESPA GTS i.e. / Touring 300 ZAPMA3300 4T LC '17-'18
VESPA GTS i.e. / Touring 4V HPE 300 ZAPMA36, ZAPMA39 4T LC '19-'20
VESPA GTS i.e. / Touring 4V HPE Euro5 300 ZAPMD31, ZAPMD3101 4T LC '20-'22
VESPA GTS i.e. / Touring 4V iGet Euro5 125 ZAPMD3200 / ZAPMD3201 4T LC '20-'22
VESPA GTS i.e. 250 ZAPM45100 / RP8M45410  4T LC '05-'14
VESPA GTS i.e. 4V iGet / Touring 125 ZAPMA3100 / ZAPMA3200 4T LC '17-'18
VESPA GTS i.e. 4V iGet / Touring 125 ZAPMA3700 4T LC '19-'20
VESPA GTS i.e. ABS 250 ZAPM45101 4T LC '05-'13
VESPA GTS i.e. Super / Super Sport / Supertech 4V HPE 300 ZAPMA36, ZAPMA39 4T LC '19-'20
VESPA GTS i.e. Super / Super Sport / Supertech 4V HPE Euro5 300 ZAPMD31, ZAPMD3101 4T LC '20-'22
VESPA GTS i.e. Super / Super Sport / Supertech 4V iGet 125 ZAPMA3700 4T LC '19-'20
VESPA GTS i.e. Super / Super Sport / Supertech 4V iGet Euro5 125 ZAPMD3200 / ZAPMD3201 4T LC '20-'22
VESPA GTS i.e. Super / Super Sport 300 ZAPMA3300 4T LC '17-'18
VESPA GTS i.e. Super 125 ZAPM45300 4T LC '09-'13
VESPA GTS i.e. Super 300 ZAPM45200 / ZAPM459L  4T LC '08-'13
VESPA GTS i.e. Super 4V iGet / Super Sport 125 ZAPMA3100 / ZAPMA3200 4T LC '17-'18
VESPA GTS i.e. Super Sport 125 ZAPM45300 4T LC '11-'13
VESPA GTS i.e. Super Sport 300 ZAPM45200 4T LC '10-'13
VESPA GTV 125 ZAPM31301 4T LC '06-'08
VESPA GTV i.e. 250 ZAPM45102 / ZAPM459L  4T LC '06-'09
VESPA GTV i.e. 300 ZAPM45201/ ZAPM459L 4T LC '10-'13
VESPA GTV i.e. Sei Giorni 300 ZAPMA3302 4T LC '17-'18
VESPA GTV i.e. Sei Giorni 4V HPE 300 ZAPMA3602, ZAPMA39 4T LC '19-'20
VESPA GTV i.e. Sei Giorni 4V HPE Euro5 300 ZAPMD3102 4T LC '20-'22
